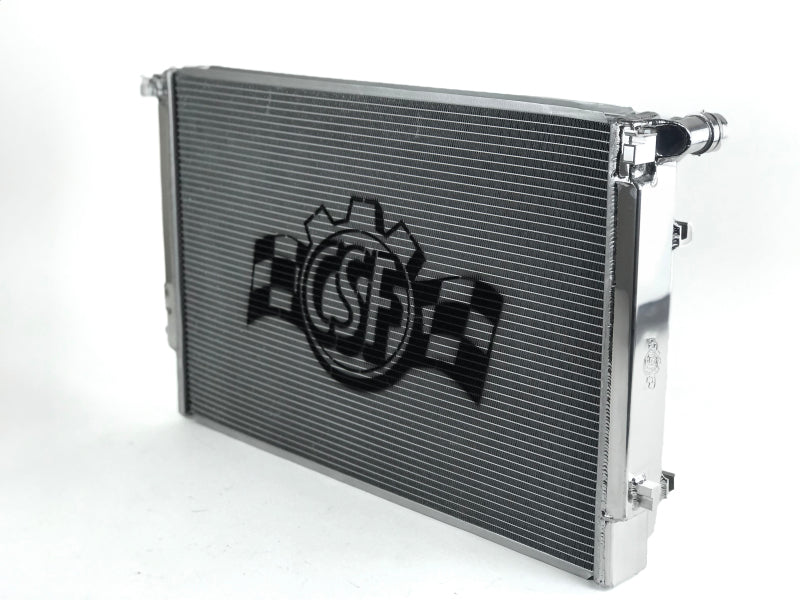

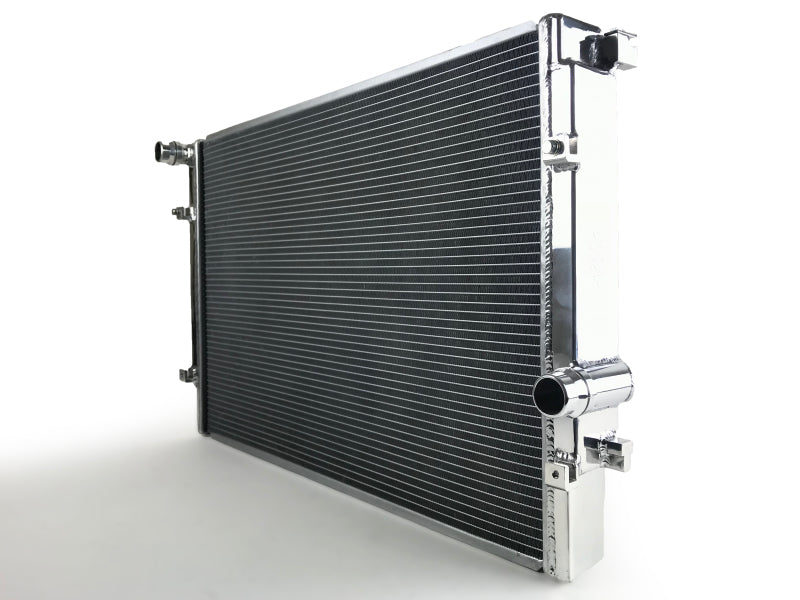

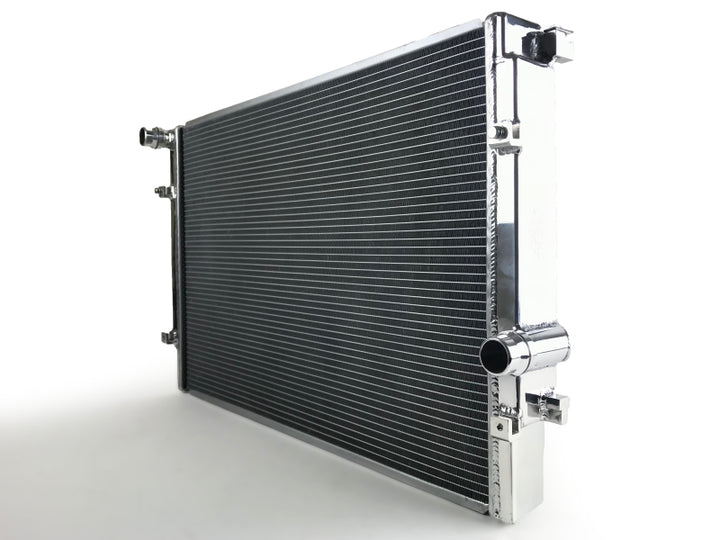

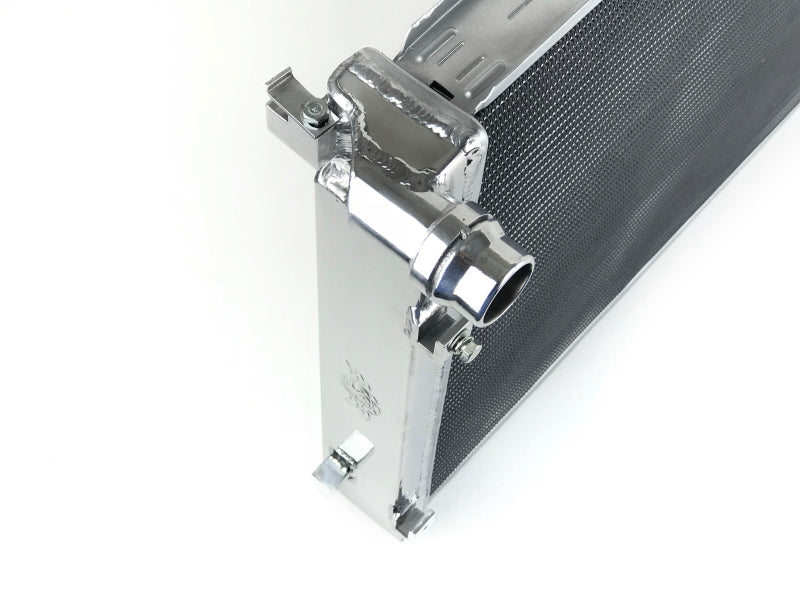

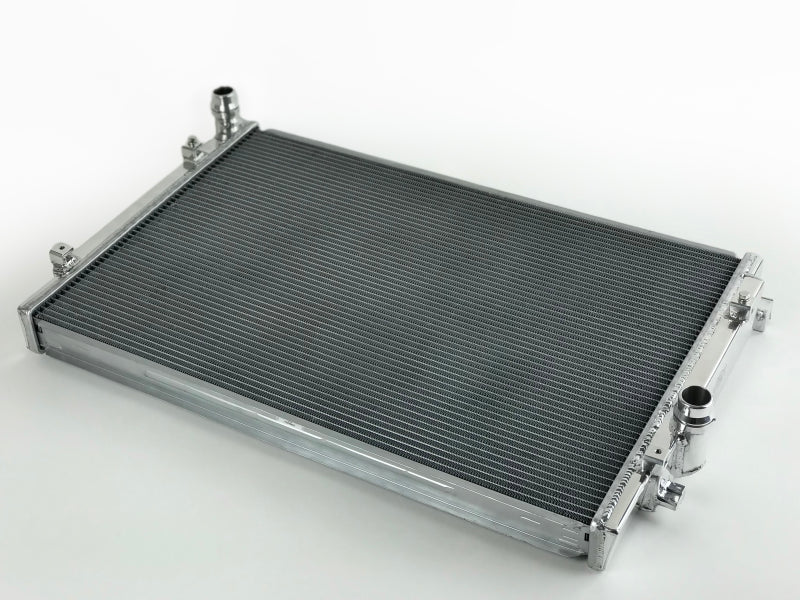

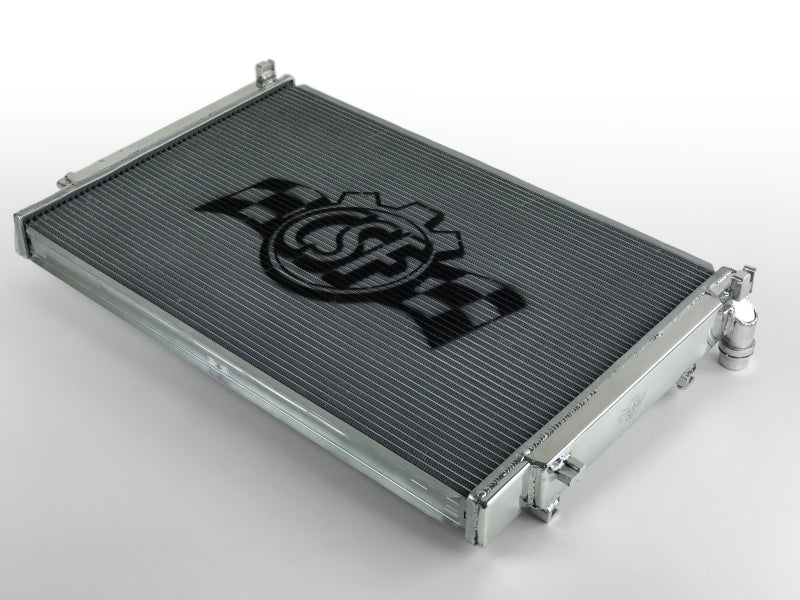

CSF 2015+ Volkswagen Golf/GTI (VAG MQB) Triple-Pass Radiator

CSF SKU: CSF7084
Price
Regular price $70700
Regular price Sale price $70700
Save
/

13 In stock


  • Inventory above may reflect inventory in a Canadian or US warehouse, please contact us for a proper ETA
  • Price Match Guarantee - Found a better price? Send us an email with the link. sales@ossmotorsport.com
  • Canadian and Prefer to pay a 50% Deposit? Select that payment option at checkout!
Shipping calculated at checkout.
Description
CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Audi/VW running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. The Triple-Pass Flow Structure allows the coolant to flow across the core of the radiator three times before exiting for lowest outlet temperatures possible. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

This Part Fits:

Year Make Model Submodel
2017-2020,2022-2024 Audi A3 Premium
2017-2020,2022-2024 Audi A3 Premium Plus
2017-2019,2022 Audi A3 Prestige
2015-2016 Audi A3 TDI Premium
2015-2016 Audi A3 TDI Premium Plus
2015-2016 Audi A3 TDI Prestige
2019 Audi A3 Titanium
2015-2020,2022-2026 Audi A3 Quattro Premium
2015-2020,2022-2026 Audi A3 Quattro Premium Plus
2015-2019,2022 Audi A3 Quattro Prestige
2019-2025 Audi Q3 Premium
2019-2025 Audi Q3 Premium Plus
2019 Audi Q3 Prestige
2020-2023 Audi Q3 S-Line Premium
2020-2023 Audi Q3 S-Line Premium Plus
2020 Audi Q3 S-Line Prestige
2026 Audi S3 Base
2020,2022-2025 Audi S3 Premium
2015-2020,2022-2025 Audi S3 Premium Plus
2015-2019,2022-2025 Audi S3 Prestige
2016-2023 Audi TT Quattro Base
2016-2023 Audi TTS Quattro Base
2019-2021 Volkswagen Arteon SE
2019,2022-2023 Volkswagen Arteon SE R-Line
2019-2020 Volkswagen Arteon SEL
2019 Volkswagen Arteon SEL Premium
2019-2023 Volkswagen Arteon SEL Premium R-Line
2019-2023 Volkswagen Arteon SEL R-Line
2016 Volkswagen Golf Base
2015 Volkswagen Golf Launch Edition
2015-2018 Volkswagen Golf S
2015-2016,2018 Volkswagen Golf SE
2015-2016 Volkswagen Golf SEL
2017 Volkswagen Golf Wolfsburg Edition
2017-2019 Volkswagen Golf Alltrack S
2017-2019 Volkswagen Golf Alltrack SE
2017-2019 Volkswagen Golf Alltrack SEL
2023 Volkswagen Golf R 20th Anniversary Edition
2015-2019,2022-2026 Volkswagen Golf R Base
2025 Volkswagen Golf R Black Edition
2016 Volkswagen Golf SportWagen Limited Edition
2015-2019 Volkswagen Golf SportWagen S
2015-2018 Volkswagen Golf SportWagen SE
2015-2018 Volkswagen Golf SportWagen SEL
2023 Volkswagen GTI 40th Anniversary Edition
2015-2026 Volkswagen GTI Autobahn
2019 Volkswagen GTI Rabbit Edition
2015-2026 Volkswagen GTI S
2015-2026 Volkswagen GTI SE
2017 Volkswagen GTI Sport
2018-2025 Volkswagen Tiguan S
2018-2025 Volkswagen Tiguan SE
2020-2025 Volkswagen Tiguan SE R-Line Black
2018-2021 Volkswagen Tiguan SEL
2018-2019 Volkswagen Tiguan SEL Premium
2019-2021 Volkswagen Tiguan SEL Premium R-Line
2019,2022-2025 Volkswagen Tiguan SEL R-Line
2019 Volkswagen Tiguan SEL R-Line Jet Black
2024 Volkswagen Tiguan Wolfsburg Edition
