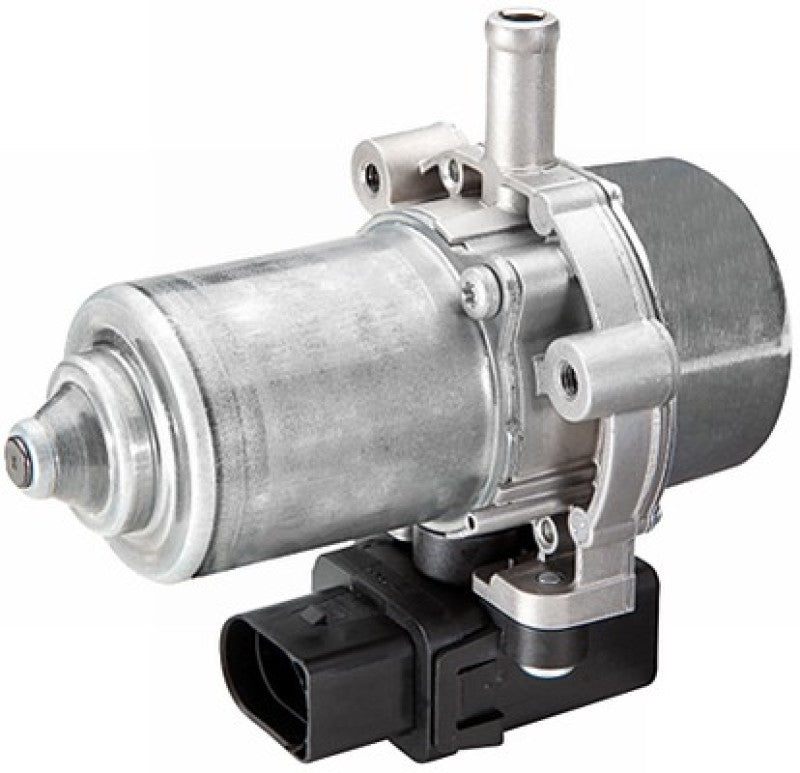

Hella UP28 Vacuum Pump Audi/VW (Min Qty of 6)

Hella SKU: HELLA008570027
Price
Regular price $15900
Regular price $18700 Sale price $15900
Save 15%
/

No Inventory information Available, contact for ETA


  • Inventory above may reflect inventory in a Canadian or US warehouse, please contact us for a proper ETA
  • Price Match Guarantee - Found a better price? Send us an email with the link. sales@ossmotorsport.com
  • Canadian and Prefer to pay a 50% Deposit? Select that payment option at checkout!
Shipping calculated at checkout.
Description
Electric vacuum pumps from HELLA are used to support or solely generate the vacuum for the pneumatic brake boosting system. Under certain driving conditions or depending on the engine design, insufficient or no vacuum can be provided to the brake booster via the intake manifold of an internal combustion engine. The UP 28 variant can support the system by generating an additional vacuum (support application) The UP 5.0 and UP 30 can provide the pneumatic vacuum supply alone ("stand alone" application). In this case, the pump acts as the sole source of vacuum and ensures sufficient supply for the brake booster and any auxiliary consumers. Structure and function: The operation of the vacuum pumps is based on the rotary vane compression principle. The pump contains a rotor that is eccentric to the pump chamber. The slides embedded in the rotor slide along the inner wall of the pump chamber. Rotation continuously compresses the volume enclosed by the slides. This change in cell volume causes a vacuum with the effect that air is drawn in from the brake booster via the pneumatic line system of the brake system by the vacuum pump.

This Part Fits:

Year Make Model Submodel
2015 Audi A3 TDI Premium
2015 Audi A3 TDI Premium Plus
2015 Audi A3 TDI Prestige
2008-2009 Audi A3 Quattro Base
2018 Audi S3 Premium Plus
2018 Audi S3 Prestige
2008-2009 Audi TT Quattro Base
2017 Volkswagen Beetle #PinkBeetle
2012-2015 Volkswagen Beetle Base
2015,2017 Volkswagen Beetle Classic
2016 Volkswagen Beetle Denim
2016-2017 Volkswagen Beetle Dune
2015-2016 Volkswagen Beetle Fleet Edition
2005 Volkswagen Beetle GL
2005 Volkswagen Beetle GLS
2014 Volkswagen Beetle GSR
2013-2015 Volkswagen Beetle R-Line
2016 Volkswagen Beetle R-Line S
2016 Volkswagen Beetle R-Line SE
2016-2017 Volkswagen Beetle R-Line SEL
2016-2017 Volkswagen Beetle S
2016-2017 Volkswagen Beetle SE
2016-2017 Volkswagen Beetle SEL
2013-2015 Volkswagen Beetle TDI
2012-2013 Volkswagen Beetle Turbo
2016 Volkswagen Beetle Wolfsburg Edition
2008 Volkswagen Eos VR6
2010-2014,2016 Volkswagen Golf Base
2005-2006 Volkswagen Golf GL
2005-2006 Volkswagen Golf GLS
2006 Volkswagen Golf GLS TDI
2005-2006 Volkswagen Golf GTI 1.8T
2005 Volkswagen Golf GTI VR6
2015 Volkswagen Golf Launch Edition
2015-2018 Volkswagen Golf S
2015-2016,2018 Volkswagen Golf SE
2015-2016 Volkswagen Golf SEL
2005,2010-2014 Volkswagen Golf TDI
2015 Volkswagen Golf TDI S
2015 Volkswagen Golf TDI SE
2015 Volkswagen Golf TDI SEL
2017 Volkswagen Golf Wolfsburg Edition
2017-2018 Volkswagen Golf Alltrack S
2017-2018 Volkswagen Golf Alltrack SE
2017-2018 Volkswagen Golf Alltrack SEL
2012-2013,2015-2018 Volkswagen Golf R Base
2015-2018 Volkswagen Golf SportWagen S
2015-2018 Volkswagen Golf SportWagen SE
2015-2018 Volkswagen Golf SportWagen SEL
2015 Volkswagen Golf SportWagen TDI S
2015 Volkswagen Golf SportWagen TDI SE
2015 Volkswagen Golf SportWagen TDI SEL
2015-2018 Volkswagen GTI Autobahn
2006-2013 Volkswagen GTI Base
2014 Volkswagen GTI Driver's Edition
2007 Volkswagen GTI Fahrenheit
2015-2018 Volkswagen GTI S
2015-2018 Volkswagen GTI SE
2017 Volkswagen GTI Sport
2014 Volkswagen GTI Wolfsburg Edition
2011,2015 Volkswagen Jetta Base
2003-2005 Volkswagen Jetta GL
2003-2005,2017 Volkswagen Jetta GLI
2015-2016 Volkswagen Jetta GLI SE
2015-2016 Volkswagen Jetta GLI SEL
2003-2005 Volkswagen Jetta GLS
2005 Volkswagen Jetta GLS TDI
2003 Volkswagen Jetta GLX
2015-2016 Volkswagen Jetta Hybrid SEL Premium
2011-2018 Volkswagen Jetta S
2015-2018 Volkswagen Jetta SE
2015-2018 Volkswagen Jetta SEL
2016 Volkswagen Jetta SEL Premium
2015-2018 Volkswagen Jetta Sport
2003-2004 Volkswagen Jetta TDI
2015 Volkswagen Jetta TDI S
2015 Volkswagen Jetta TDI SE
2015 Volkswagen Jetta TDI SEL
2003,2018 Volkswagen Jetta Wolfsburg Edition
2015 Volkswagen Passat TDI SE
2015 Volkswagen Passat TDI SEL Premium
2008 Volkswagen R32 Base
2014-2016 Volkswagen Tiguan R-Line
2012-2017 Volkswagen Tiguan S
2012-2016 Volkswagen Tiguan SE
2012-2017 Volkswagen Tiguan SEL
2017 Volkswagen Tiguan Sport
2017 Volkswagen Tiguan Wolfsburg Edition
2018 Volkswagen Tiguan Limited Base
