ICON 21+ Ford Bronco 2-3in Rear 2.5 VS RR CDEV COILOVER KIT

ICON SKU: ICO48710E
Price
Regular price $3,05900
Regular price Sale price $3,05900
Save
/

28 in stock at our US warehouse. Arrives in about 2 weeks.

✓ No import fees or duties at delivery
  • Price Match Guarantee - Found a better price? Send us an email with the link. sales@ossmotorsport.com
  • Canadian and Prefer to pay a 50% Deposit? Select that payment option at checkout!
Shipping calculated at checkout.

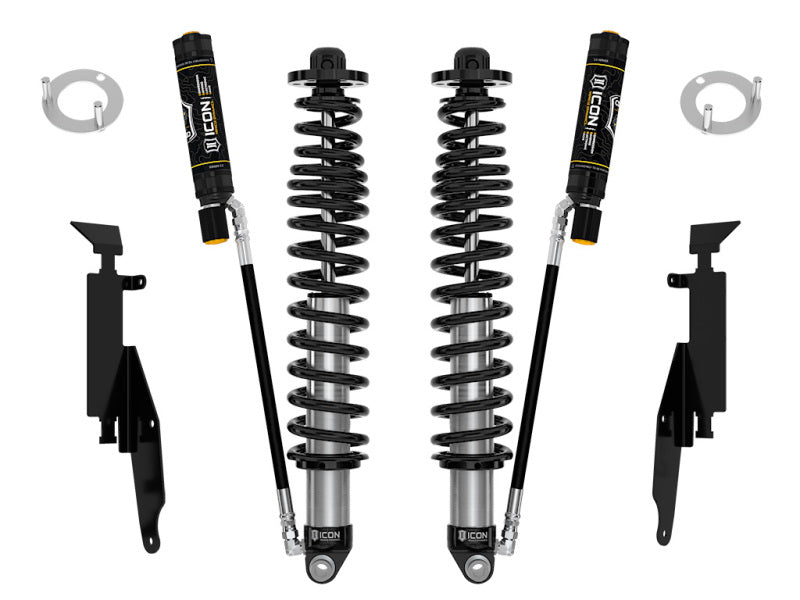

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks with CDEV are the ideal upgrade for the rear end of the 2021-2026 Ford Bronco. These adjustable coilovers allow up to 2-3” of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25” of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These rear coilovers feature unique ICON engineered progressive triple rate coil springs, allowing for softer spring rate at ride height that ramps up as the coil compresses for improved bottom out resistance. Their shaft up orientation requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design. ICON 2.5 Series front coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

Installation Instructions
  • ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • Adjustable up to 2-3" of rear lift height on non-Sasquatch or 1.25-2.25” of rear lift on Sasquatch Broncos
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use
  • 100% Bolt-on - no drilling, cutting or welding necessary for installation
  • Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft
  • FK rod end bearings for extended longevity and minimal deflection
  • Increased wheel travel (up to 14”) and ride quality over stock
  • Vehicle specific tuned for superior shock damping and control
  • 6061 Aircraft grade aluminum CNC machined components
  • Unique ICON engineered triple rate coil springs
  • Fully rebuildable and re-tunable

This Part Fits:

Year Make Model Submodel
2021-2026 Ford Bronco Badlands
2021-2023,2025-2026 Ford Bronco Base
2021-2026 Ford Bronco Big Bend
2021-2024 Ford Bronco Black Diamond
2022-2024 Ford Bronco Everglades
2021 Ford Bronco First Edition
2023-2026 Ford Bronco Heritage Edition
2023-2024 Ford Bronco Heritage Limited Edition
2021-2026 Ford Bronco Outer Banks
2025-2026 Ford Bronco Stroppe Edition
2021-2024 Ford Bronco Wildtrak
