ICON 22-23 Toyota Tundra 2.5 VS RR CDEV 6in Coilover Kit

ICON SKU: ICO58771E
Price
Regular price $2,80600
Regular price Sale price $2,80600
Save
/

Special order. Contact us at sales@ossmotorsport.com or 431-831-0100 for an ETA before ordering.

✓ No import fees or duties at delivery
  • Price Match Guarantee - Found a better price? Send us an email with the link. sales@ossmotorsport.com
  • Canadian and Prefer to pay a 50% Deposit? Select that payment option at checkout!
Shipping calculated at checkout.

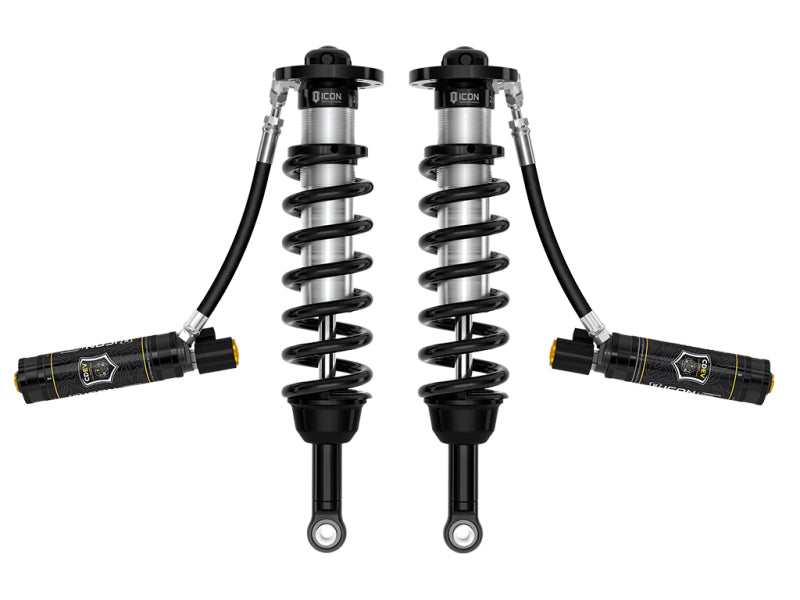

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2026 Toyota Tundra. These adjustable coilovers are specifically designed for use the ICON 6" Lift Performance Suspension System and allow up to 5-6” of front lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with 2.5 Aluminum Series CDEV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra.

Installation Instructions
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use
  • Specific length designed for use with ICON 6" Lift Performance Suspension System
  • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
  • FK rod end bearings for extended longevity and minimal deflection
  • Vehicle specific tuned for superior shock damping and control
  • Increased wheel travel and improved ride quality over stock
  • Adjustable ride height offers 5-6" of front lift over stock
  • 6061 Aircraft grade aluminum CNC machined components
  • Fully rebuildable and re-tunable
  • ICON engineered coil springs

This Part Fits:

Year Make Model Submodel
2022-2026 Toyota Tundra 1794 Edition
2022-2026 Toyota Tundra Limited
2022-2026 Toyota Tundra Platinum
2022-2026 Toyota Tundra SR
2022-2026 Toyota Tundra SR5
2022-2026 Toyota Tundra TRD Pro
