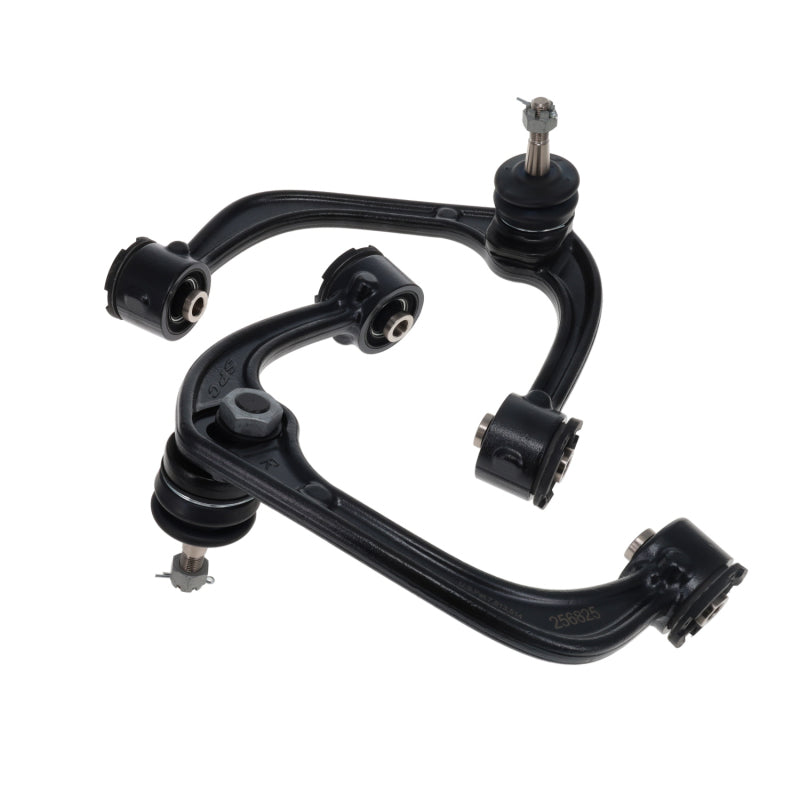

SPC Performance 04-17 Ford F-150 Front Adjustable Upper Control Arms

SPC Performance SKU: SPC35680
Price
Regular price $86200
Regular price $93700 Sale price $86200
Save 8%
/

65 in stock at our US warehouse. Arrives in about 2 weeks.

✓ No import fees or duties at delivery
  • Price Match Guarantee - Found a better price? Send us an email with the link. sales@ossmotorsport.com
  • Canadian and Prefer to pay a 50% Deposit? Select that payment option at checkout!
Shipping calculated at checkout.

Designed, engineered, tested, and assembled in Colorado, SPC Performance adjustable upper control arms are loaded with features. Improve suspension travel, handling, and tire wear while centering the tire in the wheel well for maximum clearance needed for oversized tires. Now equipped with maintenance-free ball joints and free-pivoting xAxis™ sealed flex joints in bonded rubber sleeves, for correction of alignment angles and restoration of factory ride quality. A Forged steel design provides the strength and durability needed for the most demanding environments. SPC adjustable control arms have improved clearance to get around the sp ring bucket and a full 80° of articulation in the ball joint. When trucks are lifted, caster and camber angles are affected that can lead to poor handling characteristics such as ‘wandering’. SPC control arms have positive caster built-in for lifted vehicles to restore alignment angles and driv ability. The patented ball joint design allows the tire to be positioned correctly in the wheel well and additional adjustment in the OE lower arms can maximize placement for oversized tires to avoid fender trimming. If replacement lower adjustment cams are needed, see part #86250 or #86252. Sold as pairs. US Patent No. 7,513,514.

Installation Instructions
  • Arm's adjustment range combine with OE adjusters corrects alignment angles for improved drivability and reduced tire wear & allows the tire to move forward to maximize clearance for larger tires without frame or fender modifications
  • New ball joint has 25% larger stud cross section than OE for superior strength & E-Nickel coating for superior corrosion protection while providing 80° of articulation
  • One piece polymer race Ball Joint with modern grease formula ensures quiet smooth operation & low turning torque for reduced wear and extended life that tests like OE
  • New xAxisâ„¢ sealed flex joints in bonded rubber bushings allow for extended suspension travel & superior noise vibration and harshness (NVH) characteristics
  • Forged steel arm construction provides maximum strength & clearance with additional caster provision for lifted vehicles built-in
  • New fully sealed ball joint architecture keeps grease in and contaminants out for a maintenance-free joint
  • Front Adjustment Range: Camber ±2.0Ëš / Caster -1.0Ëš to +2.0
  • Front Adjustment Range: Camber ±2.0° / Caster 0° to +4.0
  • Required: 1 per axle
  • Sold as a pair

This Part Fits:

Year Make Model Submodel
2007-2010 Ford Expedition Eddie Bauer
2007-2010 Ford Expedition EL Eddie Bauer
2008-2017 Ford Expedition EL King Ranch
2007-2017 Ford Expedition EL Limited
2015-2017 Ford Expedition EL Platinum
2016-2017 Ford Expedition EL SSV
2011-2017 Ford Expedition EL XL
2007-2017 Ford Expedition EL XLT
2008 Ford Expedition Funkmaster Flex Edition
2008-2017 Ford Expedition King Ranch
2007-2017 Ford Expedition Limited
2015-2017 Ford Expedition Platinum
2016-2017 Ford Expedition SSV
2011-2017 Ford Expedition XL
2007-2017 Ford Expedition XLT
2007-2008,2010-2014 Ford F-150 FX2
2004-2014 Ford F-150 FX4
2006-2008,2010-2012 Ford F-150 Harley-Davidson Edition
2005-2020 Ford F-150 King Ranch
2004-2020 Ford F-150 Lariat
2011 Ford F-150 Lariat Limited
2008,2013-2014,2016-2020 Ford F-150 Limited
2009-2020 Ford F-150 Platinum
2018-2020 Ford F-150 Police Responder
2016-2020 Ford F-150 SSV
2004-2014 Ford F-150 STX
2008 Ford F-150 THE 60TH ANNIVERSARY EDITION
2004-2020 Ford F-150 XL
2004-2020 Ford F-150 XLT
2006-2008 Lincoln Mark LT Base
2008-2015 Lincoln Navigator Base
2008-2015 Lincoln Navigator L
2007 Lincoln Navigator L Luxury
2016-2017 Lincoln Navigator L Reserve
2016-2017 Lincoln Navigator L Select
2007 Lincoln Navigator L Ultimate
2007 Lincoln Navigator Luxury
2016-2017 Lincoln Navigator Reserve
2016-2017 Lincoln Navigator Select
2007 Lincoln Navigator Ultimate
