Spool Performance Helix HPFP Overdrive Unit - BMW N54 / Early N55 (E8X/E9X/E6X)

Spool Performance SKU: SP-BM-HELNOF
Engine
Helix 10 Micron Filter Unit
Price
Regular price $92400
Regular price Sale price $92400
Save
/

No inventory information available. Contact us at sales@ossmotorsport.com or 431-831-0100 for details.

✓ No import fees or duties at delivery
  • Price Match Guarantee - Found a better price? Send us an email with the link. sales@ossmotorsport.com
  • Canadian and Prefer to pay a 50% Deposit? Select that payment option at checkout!
Shipping calculated at checkout.

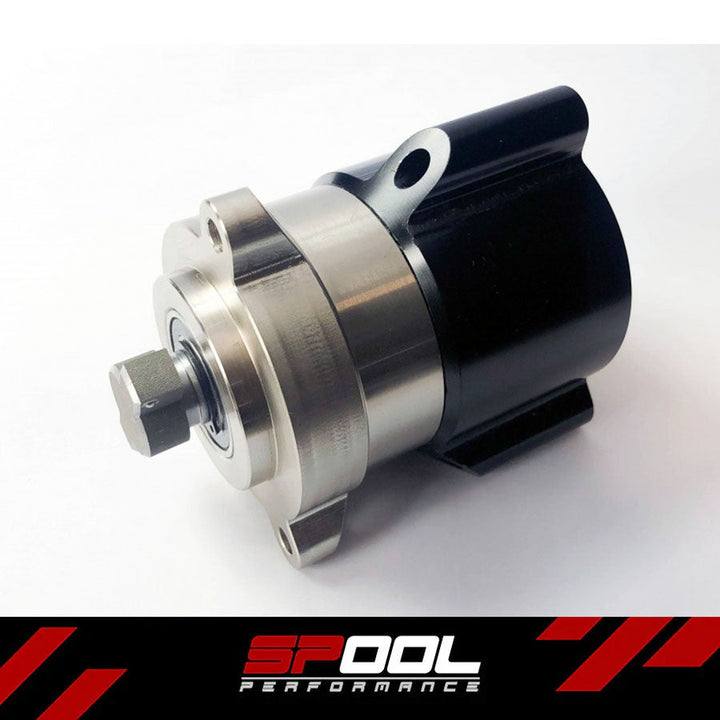

The Helix is a planetary gearbox for the factory high pressure fuel pump on the N54 and early N55. By spinning the pump faster it adds delivery strokes and raises HPFP capacity, curing rail pressure drop on tuned cars without the complexity of port injection. Spool rates the standard Helix at up to 600 whp on full E85 and 750+ whp on E60 blends.

Features

  • Planetary gear set (ring, planet and sun gears) overdrives the factory HPFP
  • Helix: up to 600 whp on full E85, 750+ whp on E60
  • Uses your factory Continental HPFP
  • Spool's testing found no extra wear or failure risk from overdriving the pump
  • Optional Helix 10 micron filter unit (highly recommended)

What's included

  • Helix overdrive unit
  • Billet vacuum cover mounting plate
  • Support bracket
  • Installation hardware
  • Helix 10 micron filter unit if selected

Fitment

  • BMW N54 engines: 2008-2010 135i, 2007-2010 335i (all bodies), 2011-2013 335i coupe/convertible and 335is, 2011 1 Series M, 2008-2010 535i
  • Early BMW N55 engines: 2011-2013 135i and E9x 335i
  • Select your engine type (N54 or N55) when ordering

Installation

Mounts using the supplied billet vacuum cover mounting plate and support bracket.

Good to know

  • Tune changes are required. Spool works with the major tuners and supplies the calibration changes on request.
  • The higher capacity Helix Xtreme is not part of this listing. Spool rates it at up to 750 whp on full E85 and 850+ whp on E60 or gasoline, and lists it as still in final durability testing.
  • Spool's testing looked at the known Continental HPFP failure points (inlet metering valve solenoid faults, and limp-home bypass valve seals that can degrade with long term E85 use) and found the Helix does not make them worse. High mileage pumps they inspected showed minimal wear on the swash plate, springs and pistons, and oil analysis showed very little metal.
  • Option guide: pick your engine (N54 or N55), then choose whether to add the Helix 10 micron filter unit.

Spool Performance part numbers: SP-BM-HELNOF, SP-BM-HEL, SP-BM-HEL2NOF, SP-BM-HEL-2. Not sure it fits your car? Send us your VIN and we will confirm before you order.
