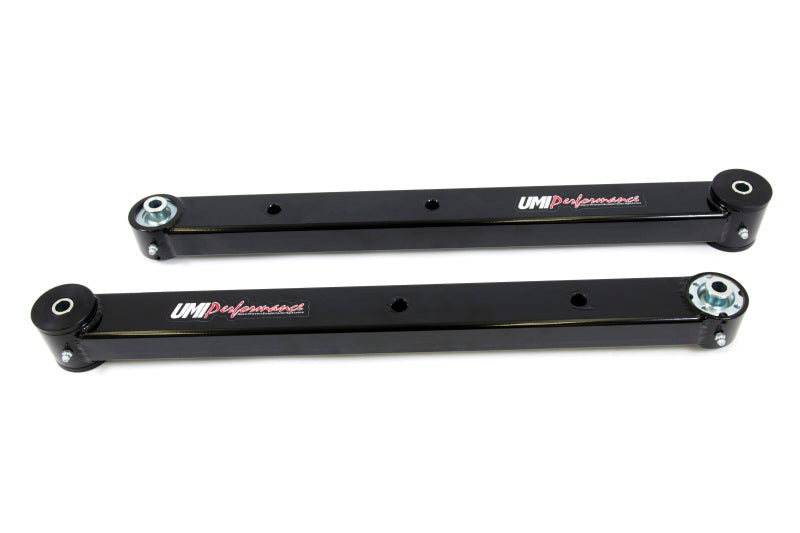

UMI Performance 64-72 A-Body Boxed Lower Control Arms- Poly/Roto-Joint

UMI Performance SKU: UMI4041-B
Price
Regular price $36400
Regular price Sale price $36400
Save
/

No Inventory information Available, contact for ETA


  • Inventory above may reflect inventory in a Canadian or US warehouse, please contact us for a proper ETA
  • Price Match Guarantee - Found a better price? Show us!
  • Canadian and Prefer to pay a 50% Deposit? Use Promo code *Deposit* at checkout to place a deposit! Remaining due before it leaves Winnipeg.
Shipping calculated at checkout.
Description
UMI's boxed lower control arms utilize our Roto-Joint technology for a bind free performance and quiet comfortable ride quality. The boxed control arms are fabricated from 0.120" wall thickness rectangular tubing, CNC machined drawn over mandrel bushing holders and MIG welded end caps to keep out unwanted road debris. Each control arm features the correct provisions for adding a stock or aftermarket rear sway bar, sway bar holes are reinforced with a 0.120" wall thickness steel sleeve that is TIG welded and sanded into place. The solid construction combined with the delrin lined Roto-Joints eliminate control arm flex and bushing deflection for improved traction and reduced wheel hop. The installed Roto-Joint is a pivot ball lined with a greaseable delrin race designed to offer 28 degrees of total unrestricted movement, more than adequate for a bind free, low friction operation. The Roto-Joint design improves performance over the factory rubber and aftermarket polyurethane bushings by allowing the suspension to articulate correctly, and provide precision handling. The installed UMI Roto-Joint allows rear end free movement when high handling, auto cross or road race is a concern while still being a 100% streetable setup. The installed delrin race, which lines the spherical ball, absorbs shock and road noise for a quiet and smooth operation on any street or track driven vehicle. This control arm set features polyurethane bushings on one end and UMI's swivel Roto-Joint on the other end. This set-up is designed for street performance and street enthusiast. The polyurethane bushing end is designed to be bolted to the vehicle chassis side while the Roto-Joint attaches to the rear end side. Since the polyurethane bushings are softer they are designed to absorb more road noise and shock before it enters the passenger compartment of the vehicle.

This Part Fits:

Year Make Model Submodel
1965-1967 Buick Gran Sport Base
1970-1972 Buick GS Base
1968-1969 Buick GS 350 Base
1968-1969 Buick GS 400 Base
1970-1972 Buick GS 455 Base
1970 Buick GS 455 GSX
1970,1972 Buick Skylark 350
1964-1972 Buick Skylark Base
1968-1972 Buick Skylark Custom
1964-1969 Buick Special Base
1964-1967 Buick Special Deluxe
1964-1972 Buick Sportwagon Base
1966,1968-1969 Buick Sportwagon Custom
1964-1968 Chevrolet Chevelle 300
1965-1969 Chevrolet Chevelle 300 Deluxe
1970-1972 Chevrolet Chevelle Base
1967-1972 Chevrolet Chevelle Concours
1969-1972 Chevrolet Chevelle Concours Estate
1969-1972 Chevrolet Chevelle Greenbrier
1964-1972 Chevrolet Chevelle Malibu
1964-1965 Chevrolet Chevelle Malibu Super Sport
1968-1972 Chevrolet Chevelle Nomad
1968 Chevrolet Chevelle Nomad Custom
1971-1972 Chevrolet Chevelle SS
1967-1970 Chevrolet Chevelle SS 396
1966 Chevrolet Chevelle Super Sport 396
1964-1972 Chevrolet El Camino Base
1968-1972 Chevrolet El Camino Custom
1968-1972 Chevrolet El Camino SS
1970-1972 Chevrolet Monte Carlo Base
1971-1972 GMC Sprint Base
1972 GMC Sprint Custom
1964-1971 Oldsmobile 442 Base
1964-1972 Oldsmobile Cutlass Base
1972 Oldsmobile Cutlass Cruiser
1964-1967 Oldsmobile Cutlass Holiday
1968,1971-1972 Oldsmobile Cutlass S
1967 Oldsmobile Cutlass Turnpike Cruiser
1964-1972 Oldsmobile Vista Cruiser Base
1964-1967 Oldsmobile Vista Cruiser Custom
1969-1972 Pontiac Grand Prix Base
1964-1972 Pontiac GTO Base
1970-1971 Pontiac GTO The Judge
1964-1972 Pontiac LeMans Base
1972 Pontiac LeMans Luxury
1969-1970 Pontiac LeMans Safari
1970-1972 Pontiac LeMans Sport
1971 Pontiac LeMans T37
1964-1970 Pontiac Tempest Base
1964-1969 Pontiac Tempest Custom
1970 Pontiac Tempest GT
1964-1969 Pontiac Tempest Safari
